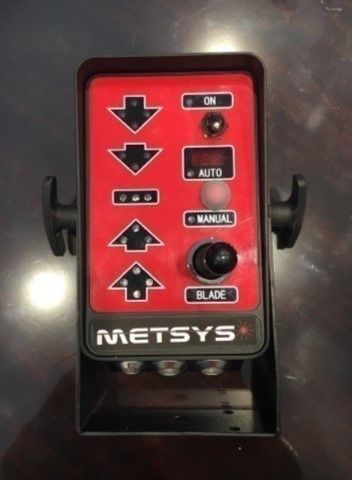

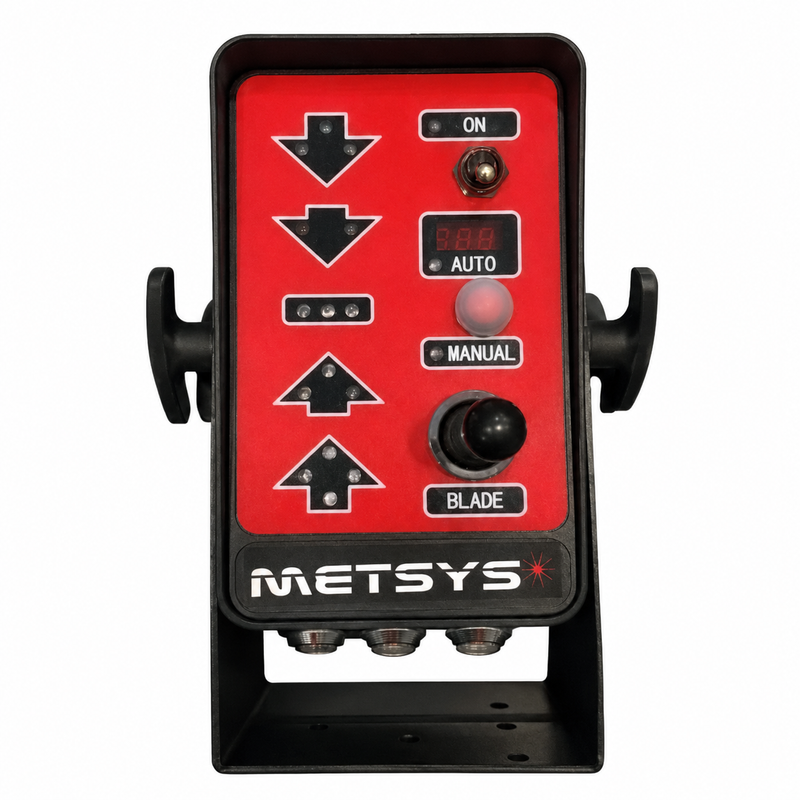

METSYS MACHINE CONTROL SYSTEM
Stock Code:
MCS18
Description
Metsys machine control system
Benefits:
The MCS18 levelling technology achieves automatic, flexible, quick and precise land levelling through the hydraulic control systems.
Sensitivity comparison:
The MCS18 is 10-50 times that of a combined visual estimate and manual operation of hydraulic systems.
What it can be used with:
- Grader
- Bull dozer
- Excavator
- Flat shovel
Fields of use:
- Farmland flat
- Water conservation
- Hydropower projects
- Road engineering
- City construction
- Tunnel engineering
Technical Specifications:
- Reception angle: 360° entire circular window
- Reception height range: 270 cm
- Receiving accuracy: ± 1cm
- Working distance: diameter 600m (under good weather conditions)
- Reception display: 5 wave band, high light LED single surface display
- Protection level: IP66 anti seismic/anti interface
- Operating temperature: -20°C to +50°C
- Connection mode: 10 core Arial plug connect with controller
- Fixing form: Fixed by jaws
- Power supply: DC12V
POA
