AXE-B11 | SCANOLOGY 3D Scanner
Description
The Scantech AXE-B11 is a high-accuracy 3D scanner designed for large-scale 3D measurement without extra devices. Using 11 crossed blue lasers, it delivers a fast scan rate of 1,300,000 measurements per second, capturing detailed 3D data efficiently.
A single blue laser line allows scanning of deep holes and hard-to-reach areas on complex parts. The built-in photogrammetry system enables ultra-high precision scanning for large objects, with volumetric accuracy up to 0.020 mm/m and detail accuracy up to 0.020 mm.
Includes 1-year warranty.
Downloads
AXE-B 3D Model ScannerThe AXE-B 3D model scanner leverages advanced optical measurement technology to capture highly detailed 3D models of objects. With an impressive maximum scanning speed of 2,000,000 measurements per second, this scanner excels at swiftly and accurately gathering 3D data of various objects. Its ability to capture precise deviations on the geometric surface ensures that the scanned models are incredibly accurate and true to the original objects. This makes the AXE-B 3D scanner an invaluable tool for industries such as manufacturing, design, and prototyping. |
 |
 |
 |
Extreme-fast Response

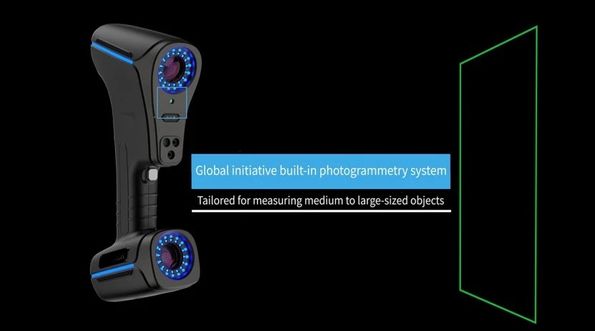

The AXE-B 3D model scanner features a maximum of 17 intersecting blue laser lines, ensuring rapid and precise scanning at speeds of up to 2,000,000 measurements per second. This exceptional performance translates to unparalleled work efficiency. With a global initiative built into the photogrammetry system, AXE-B outputs an ultra-large scanning area and metrology-grade measurement accuracy. Getting rid of limitations like size, shape, material, and complexity of the object, AXE-B can freely choose working modes of efficient high-speed scanning and accurate deep hole scanning. It achieves ultra-high precision 3D inspection of medium to large-sized projects without the aid of extra devices. |
Versatile Stand-alone OperationOur AXE-B scanner features flexible working modes tailored to different scanning needs: high-speed scanning for efficient results and precise deep hole scanning for intricate positions, including deep holes and challenging angles. It enables accurate 360° real-time 3D inspections independently, allowing for efficient and precise assessments of medium to large-sized workpieces while working alone.
|
 |
 |

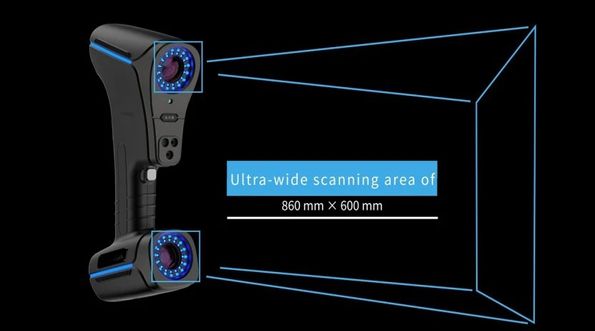

Revolutionary Patent for Wide-Angle VisionOur cutting-edge photogrammetry system sets a global standard for measuring medium to large-sized objects, boasting a volumetric accuracy of 0.030 mm/m. With an expansive scanning area of 860 mm × 600 mm, enjoy an unparalleled 3D scanning experience.
|
