METSYS Laser - Red Pipe Laser
Description

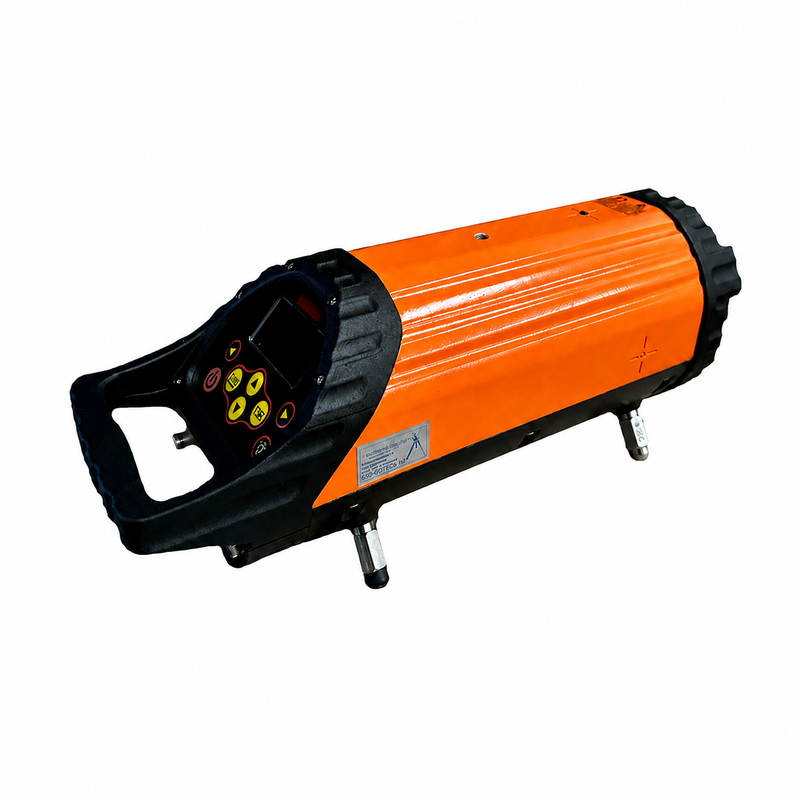

METSYS Red Beam Pipe Laser
The METSYS Red Beam Pipe Laser provides a visible reference for line and grade control during drainage, sewer and stormwater pipe installation. With a working range of up to 200 m and a grade range of -20% to +30%, it helps contractors align pipes to the required direction and gradient.
Fully automatic self-levelling and automatic beam centring simplify setup, while a clear OLED display with large figures makes instrument settings easy to read. Beam direction can be adjusted using the instrument controls or the supplied infrared remote control, which operates from up to 100 m in front of the instrument or 50 m behind it.
A robust aluminium housing and IP68 dust and water protection support use in demanding site conditions. Rechargeable NiMH batteries provide a stated operating time of 24 hours, with the option to use four D-size alkaline batteries. Supplied with targets, interchangeable leg sets, a charger and a carry container, the kit provides practical accessories for positioning, alignment and transport.
Key Features
- Red laser beam for pipe alignment and grade control
- Working range of up to 200 m
- Grade range from -20% to +30%
- Fully automatic self-levelling with a ±5° range
- Automatic beam centring
- Clear OLED display with large figures
- Beam direction adjustment via instrument controls or infrared remote control
- Remote control range of up to 100 m at the front and 50 m at the rear
- Robust aluminium housing with IP68 dust and water protection
- Rechargeable NiMH battery operation, with a stated runtime of 24 hours
- Optional operation using four D-size alkaline batteries
- Class 3R laser
Package Includes
- METSYS Red Beam Pipe Laser
- Infrared remote control
- Target frame with target for DN 150–300 pipes
- Additional target for DN 400–500 pipes
- Leg sets for DN 200, DN 250, DN 300, DN 400 and DN 500 pipes
- Adapter for three-leg setup
- Charger
- Battery case for alkaline batteries
- Carry container
