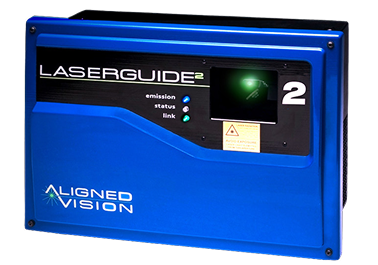

ALIGNED VISION LASERGUIDE² (LT)
Stock Code:
AV-LASERGUIDE2-LT
Description
LASERGUIDE2 – High-Performance, Cost-Effective Laser Guidance
Incorporating the latest advancements in lasers, galvanometers, optics, temperature stabilization, and computing, LASERGUIDE2 delivers precise 3D industrial laser projections. It meets laser templating and other guidance needs with industry-leading reliability.
Key Features
- Reliable, next-generation hardware: Guides operators with superior accuracy and persistence, allowing them to focus on value-adding tasks instead of managing projectors.
- Multitasking software: Projects up to 4 jobs simultaneously, enabling 4 teams to work efficiently with fewer projectors, controllers, and setup steps.
- Safe and efficient laser: CDRH Class II / IEC Class 2 laser projects bright, safe lines while extending laser lifespan by operating below maximum capacity.
Specifications
- Size: 16.5” x 6.5” x 11.5” / 42 x 16.5 x 29.5 cm
- Weight: 21 lb / 9.5 kg
- Projection Range:
- Standard: 3’–25’ / 1–7 m
- Long Throw (LT): 3’–40’ / 1–12 m
- Long Throw Extended (LTE): 3’–50’ / 1–15 m
- Accuracy: ±0.010” / 0.25 mm (meets Boeing D6-55902)
- Beam Color: Green (532 nm)
- Laser Class: CDRH Class II / IEC Class 2
- Multitasking: Supports 4 simultaneous projections
- Setup: Plug and play, no programming required
POA
