ALIGNED VISION LASERVISION-AI
Stock Code:
AV-LASERVISION-AI
Description

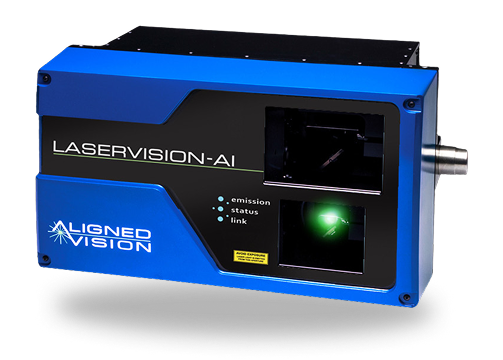

LaserVision-AI

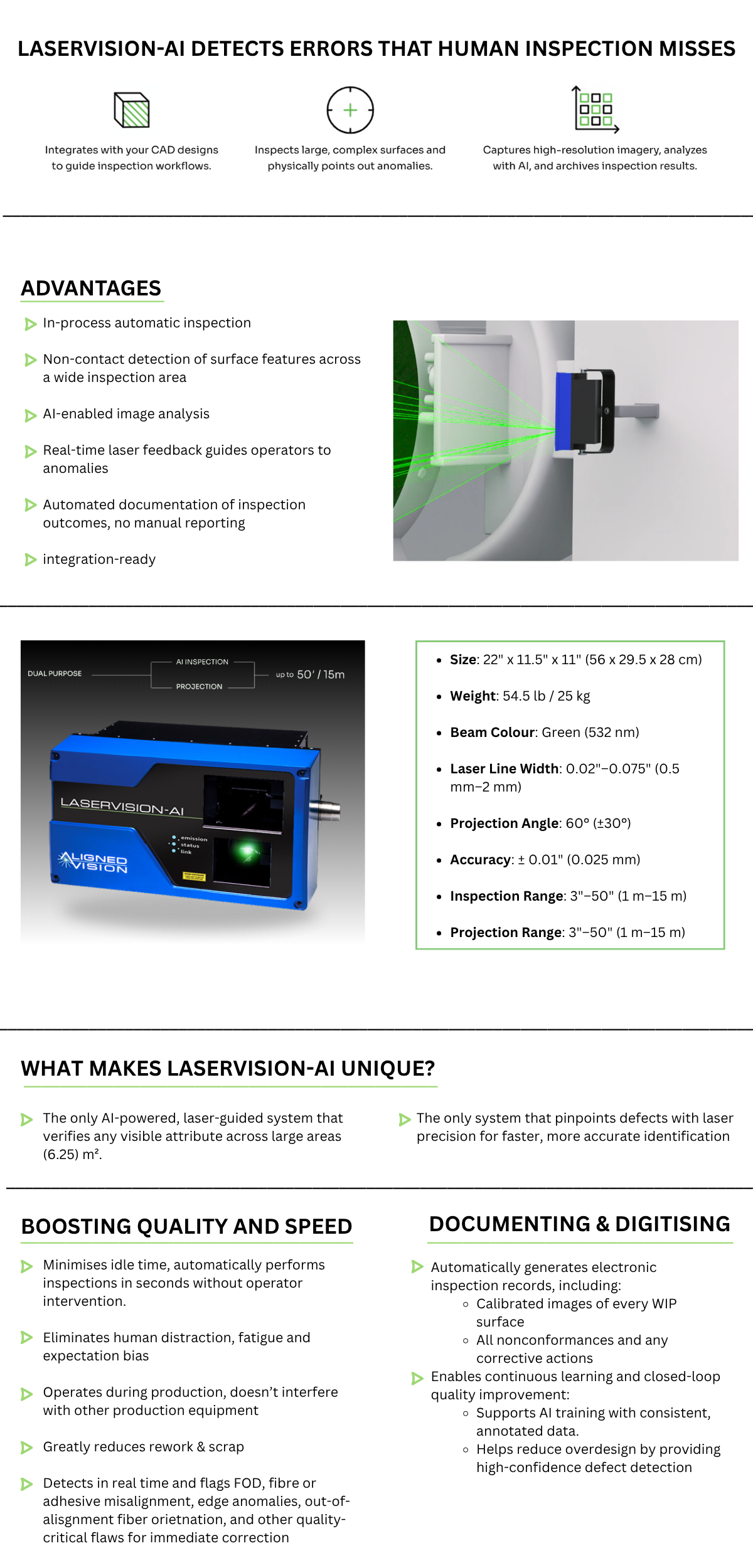

LaserVision-AI is a large-field AI inspection system that detects critical surface anomalies, such as scratches, cracks, porosity, and fiber misalignment, helping ensure build quality and reducing costly rework.
Key Features:
- AI Defect Detection: Real-time identification of scratches, cracks, porosity, and misalignments
- Non-Contact Inspection: Works across a wide field without touching the surface
- Laser Guidance: Projects directly onto defect locations for operator action
- High Accuracy: ± 0.01" (0.025 mm) within a 1–15 m range
- Automated Reporting: No manual data entry required
- Industry 4.0 Ready: Seamless integration into smart factory systems
Specifications:
- Size: 22" x 11.5" x 11" (56 x 29.5 x 28 cm)
- Weight: 54.5 lb / 25 kg
- Beam Color: Green (532 nm)
- Laser Line Width: 0.02"–0.075" (0.5 mm–2 mm)
- Projection Angle: 60° (±30°)
- Accuracy: ± 0.01" (0.025 mm)
- Inspection Range: 3"–50" (1 m–15 m)
- Projection Range: 3"–50" (1 m–15 m)
Applications:
- Metal Parts: Surface quality control during or post-manufacture
- Composite Materials: Detects porosity and fiber misalignment
- Precision Manufacturing: Inline defect detection and correction
- Aerospace / Medical / Automotive: Ensures quality in regulated industries
POA
