Leica Depth master 200 machine control r
Description

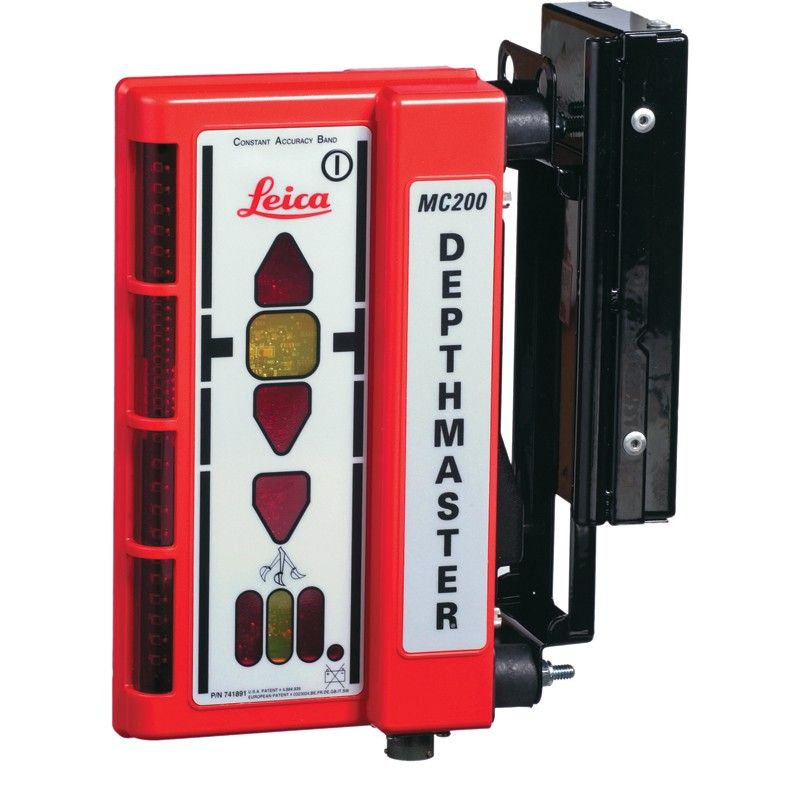

Leica MC200 Depthmaster for excavators Machine Control Laser Receiver
Product Overview
The Leica Depthmaster from is designed for Digging applications where only indicate control is required. Mounted on the dipper stick it works with any rotating laser and transforms your dipper stick into a measuring tool. The Leica Depthmaster reception area is 200°. The intensity of the LED cluster of indicator lights can be seen even on the brightest of days and indicates the on-grade position relative to the plane of laser light. With its patented internal verticality control system, grade control will be more accurate as verticality is a prerequisite for precise measurements.
Constant Accuracy Band (CAB)
Maintains "on-grade" accuracy regardless of operating distances spot size, or rotating laser type, either ±1/6" (4 mm) or ±1/2" (12 mm) depending on job site requirements.
Pole Mount
When used with the optional clamp-on assemblies, the Depthmaster can be pole mounted for use on any machine.
Magnetic Mount
The Depthmaster is extremely convenient with its powerful magnetic mount. It takes seconds to attach to the machine. No drilling or welding is required.
Memory
When the Depthmaster is out of the range of the laser an LED will blink indicating which way to move the sensor to reacquire the laser.
Shake to Wake
The unique "SHAKE TO WAKE" system turns off non-essential electronics after 5 minutes of non-use. It automatically turns back on when your machine begins to move again.
Indicate or Automatic Control
The Depthmaster can be used as an indication the only system using the highly visible LED for grading or excavating. Using an optional control panel, the Depthmaster can even be used for full hydraulic blade control.
Patented Plumb Indicator
Monitors the excavator's dipper arm vertically for consistent and accurate grade readings.
Mirror Image Mounting
Front and rear display panel of the Depthmaster are the same for mounting on either side of the machine.
Features:
- Works with any rotating laser
- Daily set-up can be done in minutes
- Delivers accurate grade readings with its built-in patented plumb indication
- Can be installed on any excavator or back-hoe
- Comfortable reactivation while in stand-by without leaving the cabin (Shake to Wake)
- Intuitive indications and uses - no extensive studies of manual necessary
- Very easy to understand and use
Includes:
- MC200 Depthmaster with Carrying Case
- Battery Pack NiMH for MC200 DepthMaster
- Magnetic Mount for DM200
- 110V Battery Charger
- User Manual
Specifications:
- Range Radius: 200 m
- Reception: 200°
- Capture Window: 21 cm
- Accuracy (fine): ±4 mm
- Accuracy (coarse): 12 mm
- Protection class (splash water/dust proof): IP 67
- Battery type/hours: NiCD rechargeable (NiMH Q3/14) / > 48)
- Weight: 2.4 kg
- Mounting: Magnetic / Clamps
- Remote Display: NO
