API iLT Laser Tracker

Stock Code:
API-ILT

Description

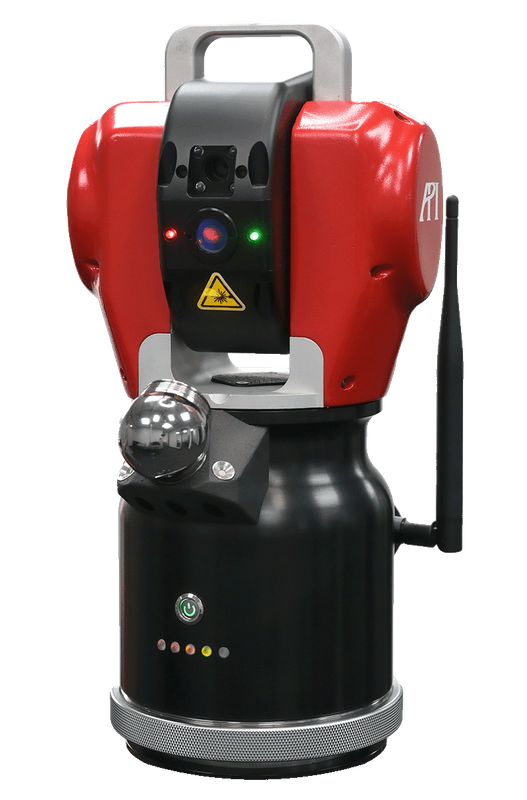

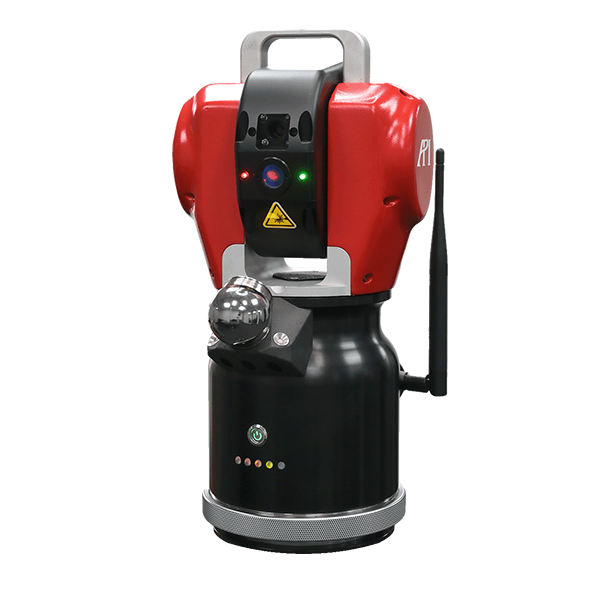

API iLT Laser Tracker

Compact. Powerful. Precise.

The API iLT Laser Tracker is a high-precision, portable 3D measurement system designed for demanding industrial applications. Combining laser interferometry and absolute distance measurement (ADM) technologies, the iLT delivers accuracy of ±15µm + 0.7µm/m across a 25–80 meter range—all in a compact 4.9 kg form factor.

Built for wireless, cable-free operation, the iLT features an integrated controller, up to 8 hours of battery life, and automatic beam re-locking, making it ideal for fast, accurate measurement in tight or remote spaces.

Key Features:

  • Measurement Range: 25–80 meters
  • Accuracy: ±15µm + 0.7µm/m
  • Weight: 4.9 kg
  • Battery Life: Up to 8 hours
  • Wireless Connectivity: Integrated Wi-Fi
  • Environmental Compensation: Built-in weather station
  • Ingress Protection: IEC 60529 certified for dust/water resistance
  • Autolock Functionality: Automatic re-lock within 30° field of view

Ideal For:

  • Aerospace & Automotive
  • Energy & Wind
  • Heavy Machinery
  • Robotics & Automation
  • Military & Defense
  • Tooling & Fixture Inspection

The iLT is the go-to solution for alignment, calibration, inspection, and reverse engineering— providing unmatched portability and precision in one compact unit.

(03) 9720 6222

POA
