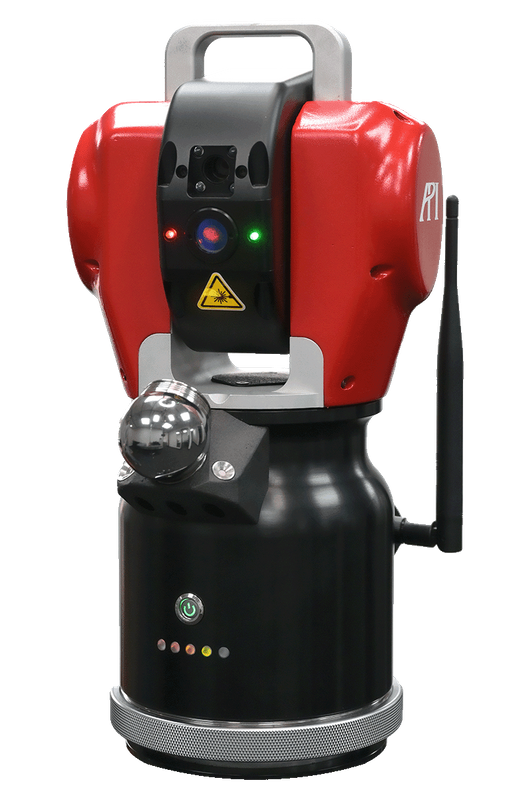

API iLT X 80 Laser Tracker
Precision and Power for Large-Scale Measurements
The API iLT X 80 Laser Tracker is a next-generation 3D measurement system designed to deliver exceptional accuracy and reliability over long distances. With a maximum measurement range of up to 80 meters, the iLT X 80 combines cutting-edge laser interferometry (IFM) and absolute distance measurement (ADM) technologies to provide ultra-precise results for a wide variety of industrial applications.
Engineered for industries that require high-performance measurement solutions, the iLT X 80 is perfect for alignment, calibration, inspection, and reverse engineering tasks that demand precision over larger distances. Whether you’re working with large equipment or complex structures, the iLT X 80 ensures that every measurement is delivered with ±15µm + 0.7µm/m accuracy.
Key Features:
- Measurement Range: Up to 80 meters, ideal for larger parts, structures, or complex calibration tasks
- Accuracy: ±15µm + 0.7µm/m for reliable and precise measurements at extended ranges
- Wireless Operation: Integrated Wi-Fi for cable-free operation, making setup and mobility easier in remote or challenging environments
- Integrated Controller: All-in-one design featuring an integrated controller for streamlined setup and operation
- Environmental Compensation: Built-in weather station compensates for temperature, pressure, and humidity variations, ensuring accuracy in diverse conditions
- Battery Life: Up to 8 hours of continuous operation on a single charge, allowing for long shifts without interruption
- Autolock Functionality: Automatically re-establishes the laser lock within a 30° field of view for continuous, uninterrupted measurements
- Lightweight & Portable: Despite its extended range, the iLT X 80 remains highly portable, weighing just 4.9 kg, and can be easily transported and set up
- Ingress Protection: Certified to IEC 60529 for dust and water resistance, ensuring durability in harsh working environments
Applications:
- Aerospace & Automotive Manufacturing
- Energy & Wind Power
- Heavy Equipment Calibration
- Robotics & Automation
- Military & Defense Calibration
- Precision Tooling, Fixtures, and Jigs Inspection
With its extended range and high level of accuracy, the iLT X 80 is an ideal solution for large-scale measurement projects, whether for alignment of oversized components or performing precision calibration tasks in robotics and automation.
